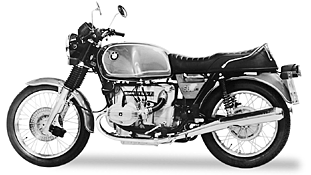

BMW R 60/7
Number sold 11.163
Price 6.850,- DM
| Engine | |
|
|
|
| Type | four-stroke, two-cylinder, horizontally-opposed "Boxer" engine, air-cooled |
| Bore/stroke | 73,5 x 70,6 mm |
| Cubic capacity | 599 cm3 |
| Max power | 40 PS (29,5 kW) at 6400 rpm |
| Max torque | 48 Nm at 5000 rpm |
| Compression ratio | 9,2 : 1 |
| Valves per cylinder | 2 |
| Valve control | ohv, using push rod and rocker arm |
| Carburation system | 2 slide carburettors, Bing 1/26/123-1/26/124 |
| Engine lubrication | wet sump |
|
|
|
| Power transmission | |
|
|
|
| Clutch | dry single plate, with diaphragm spring |
| Number of gears | 5 |
| Gear selection | dog-type gearbox (ratchet foot lever) |
| Gear ratios | 4,4 / 2,86 / 2,07 / 1,67 / 1,50 :1 (optional sport version 3,38/2,43/1,93 /1,67/1,50) |
| Rear wheel ratio | 1 : 3,36 or 1 : 3,56 |
| Bevel/crown wheel | 11 / 37 teeth or 9 / 32 teeth |
|
|
|
| Electrical system | |
|
|
|
| Alternator | Bosch 12 V / 280 W |
| Ignition | battery ignition |
| Starter | Bosch 0,6 PS |
| Spark plugs | Bosch W 225 T 30 / Beru 230/14/3 A / Champion N 6 Y |
|
|
|
| Suspension | |
|
|
|
| Type of frame | double-loop tubular frame with bolt-on rear section |
| Front suspension | telescopic fork with hydraulic shock absorber |
| Rear suspension | long swinging arm with adjustable strut |
| Spring travel | 200 / 125 mm |
| Rims front | 1,85 B 19 |
| Rims rear | 2,15 B 18 |
| Tyres front | 3,25 H 19 |
| Tyres rear | 4,00 H 18 |
| Brakes front | single disc brake Ø 260 mm |
| Brakes rear | Simplex drum brake Ø 200 mm |
|
|
|
| Dimensions and weights | |
|
|
|
| Length x width x height | 2130 x 746 x 1080 mm |
| Wheel base | 1465 mm |
| Ground clearance | 165 mm |
| Tank capacity | 24 l |
| Unladen weight, full tank | 215 kg |
| Max permissible weight | 398 kg |
| Fuel consumption | 5,5 l / 100 km (at constant 90 km/h) |
| Acceleration | 0 - 100 km/h 6,7 s |
| Top speed | 167 km/h |
|
|
|
